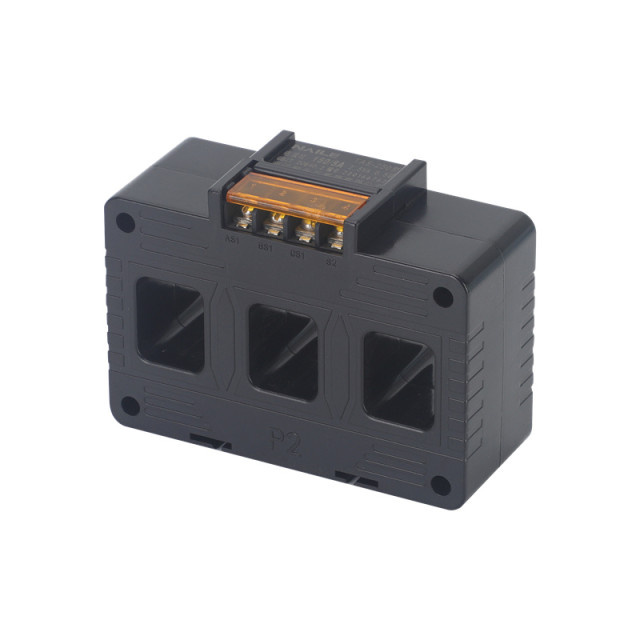

Combined transformer
Mode: TAS-250
This series of molded case three-phase transformers can be installed with molded case circuit breakers to save space. It can be installed on a rail, which is convenient and fast.
TAS-0.66 three-phase integrated transformer.
| Current ratio | Level 1.0 | Level 0.5 | Number of through-hole turns |
| 100/5 | 1 | 1 | |
| 150/5 | 1.5 | 1 | 1 |
| 200/5 | 2.5 | 1 | 1 |
| 250/5 | 2.5 | 1.5 | 1 |
| 300/5 | 5 | 1.5 | 1 |

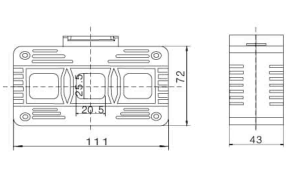

Product Dimensions↓↓
