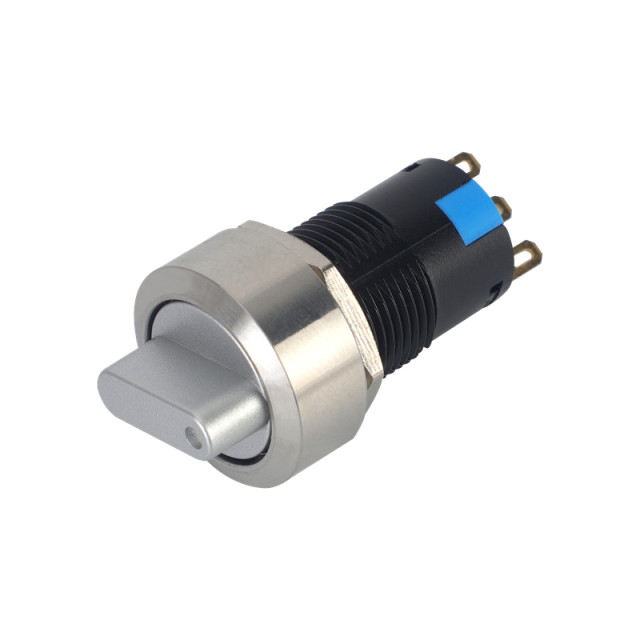

Model: NL16-11X/2
Size：φ16mm
Color: Red, Green, Yellow, Blue, White
Switch rating: 3A/250VAC
Contact Structure: 1NO
Operation type: Momentary/Latching
Housing Material: Stainless
Protection class: IP67, IK10

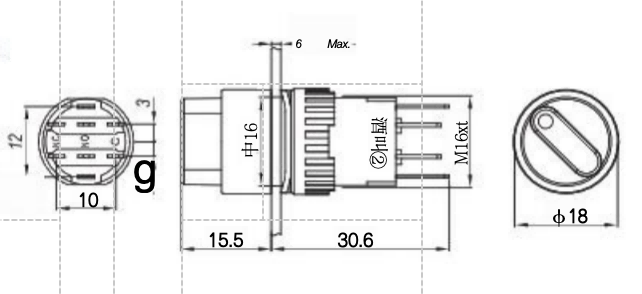

Product Dimensions↓↓
Metal Push Button Switch
● Mounting hole diameter:φ16(NL-16),φ19(NL19),φ22(NL22),φ25mm(NL25).
● Switch characteristics:fast-acting/single knife double-throw.
● Product features:The series is a three-color light structure,configuration options are abundant.
● The whole series of synchronousquick-connect sockets withbuckle bit more solid.
● Protection grade:IP65/IK10.
|
Symbol |
Symbol name |
Specify |
|
★ Mounting holediameter 16:φ16mm /19:φ19mm /22:φ22mm/25:φ25mm |
||
|
□ |
Contact Structure |
11:1NO1NC/22:2NO2NC(For 22and 25mm only)/Nolettermeansindicator |
|
Operation type Z:Latching/M:Mushroom button/No letter means momentary |
||
|
※ |
IP Degree |
Noletter meansIP67 / IK10 |
|
△ Color R:Red/G:Green/Y:Yellow/B:Blue/W:White |
||
|
▲ |
Voltage |
6V/12V/24V/110V/220V othervoltage levelscan becustomized |
|
◎ Housing Material S:Stainlesssteel/A:Aluminiumalloy(Black) |
||
Performance
Characteristic：
|
Operating Temp |
SHAPE\* MERGEFORMAT -25℃~+55℃(Non freezing)Keep the switch air circulating well |
|
Operating Humidity |
45~85% RH(Non condensing) |
|
Contact Resistance |
≤50mΩ |
|
Insulation Resistance |
≥100MΩ(500VDC) |
|
Max. withstanding voltage |
1500VAC, 50Hz, 1min |
|
Vibration resistance |
50Hz, The amplitude is about 1.2mm |
|
Solder heat resistance |
320℃ 3s |
|
Switch rating |
2A/36VDC 1A/220V |
|
Mechanical Life |
1,000,000 cycles |
|
Electrical Life |
50, 000 cycles |
|
Base material |
PA |
|
Nut torque |
About 0. 6Nm |
|
Torque |
About 4N(1NO 1NC) |
|
About 7.5N(2NO 2NC) |
|
|
Operation Travel |
About 3mm |
|
Protection class |
IP67,IK10 |
