Ordering Instructions:
1. Please specify the product model, window width, current ratio, rated output and corresponding accuracy level when ordering.
For example: Order BH-0.66P type, window width is 60mm, rated current ratio is 800/5A, rated output is 5VA, composite error is 10P, protection multiple is 10 transformer
System ordering description: BH-0.6660P 800/55VA10P10
2. If you have other requirements, please indicate them in the contract.
Protection level

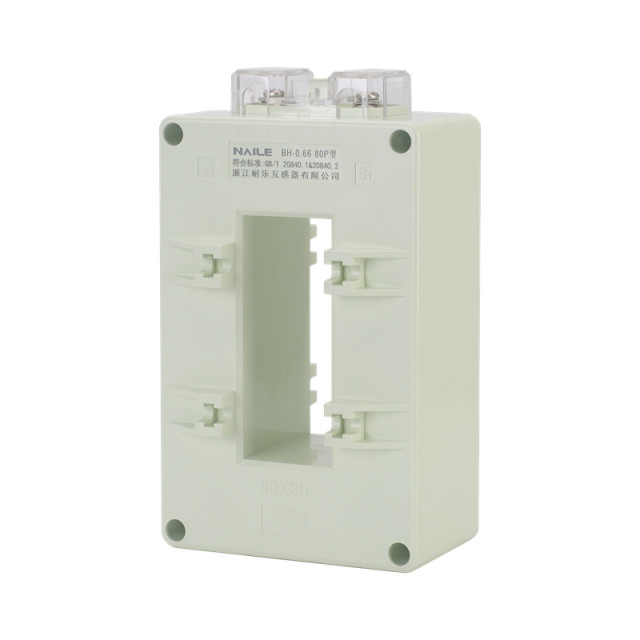

Model BH-0.66 80P 1500/5 0.5 Level
|
Current ratio |
Protective rated secondary load (VA) |
Measuring rated secondary load (VA) |
|||||
|
|
5P5 |
10P10 |
10P15 |
Level 0.5 |
Level0.2 |
Level0.5S |
Level0.2S |
|
800/5 |
5 |
2.5 |
|
10 |
10 |
10 |
10 |
|
1000/5 |
10 |
5 |
2.5 |
10 |
10 |
10 |
10 |
|
1200/5 |
10 |
5 |
5 |
10 |
10 |
10 |
10 |
|
1500/5 |
15 |
10 |
5 |
10 |
10 |
10 |
10 |
|
2000/5 |
20 |
10 |
5 |
20 |
20 |
20 |
20 |

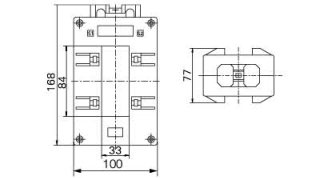

Product Dimensions↓↓
