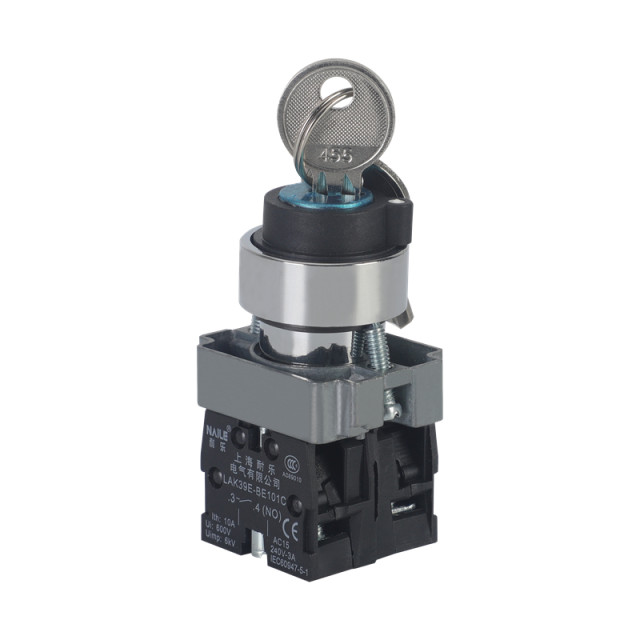

LAK39E-BG21 Two-position lock Key Button

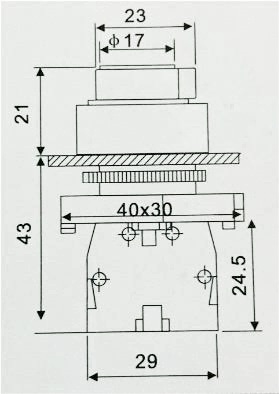

Product Dimensions↓↓

LAK39E push button switch is suitable for industrial control circuits with AC 50Hz (or 60Hz), rated working voltage up to 380V and DC working voltage 220V. It can be used as remote control in electromagnetic starter contactors, relays and other electrical circuits. Those with indicator light are for occasions where light signals are indicated.

Working Conditions and Technical Reference:

◆ Air temperature: -5℃～+40℃

◆ Air humidity: 45℃～+85℃

◆ Withstand voltage: 2500V,1min

◆ Contact resistance: ≤50mΩ

◆ Ui Rated insulation voltage: 660v

◆ Ith: 10A

◆ Electrical life: 50 x10

◆ Protection level: IP40

◆ Rated working voltage: 380V  220V   110V   48V   24V

◆ Rated working current:

-AC - 15   2.5A  4.5A   6A   8A

-DC - 13   0.3A  0.6A  1.3A  2.5

Structure and Performance:

The metal button adopts an anti-movement head and cannot be removed from the front;

All contacts have the dual functions of switching circuits and self-cleaning, and can still maintain contact reliability when used at low voltage and low current (5V.5mA);

Normally open and normally closed contact groups are independent of each other and can be combined as needed.

Concealed wiring terminals are safer and more reliable. The metal button operating head and base are made of zinc alloy, with beautiful and sturdy appearance.
