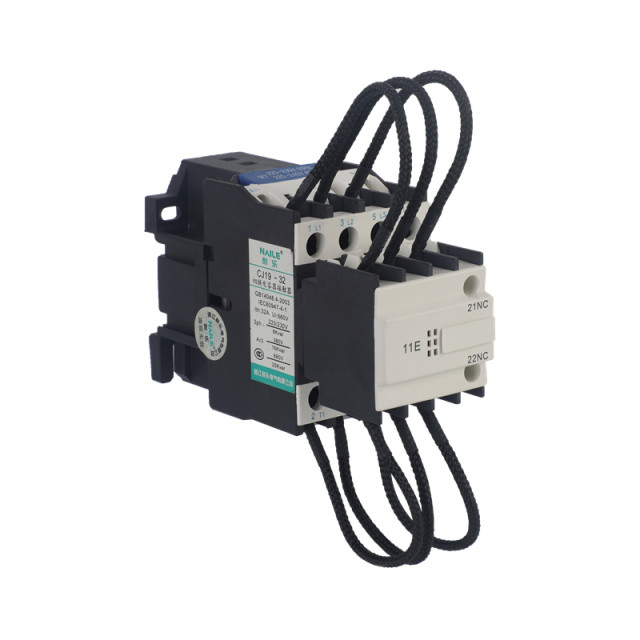

CJ19 series switching condenser contactor (hereinafter referred to as contactor) is mainly used in power lines with AC 50Hz (or 60Hz) and rated working voltage up to 400V, for low-voltage reactive power compensation equipment to put into operation or cut off low-voltage parallel capacitors. The contactor is equipped with a surge suppression device, which can effectively reduce the impact of the closing surge on the capacitor and suppress the overvoltage during disconnection.
Online InquiryWorking conditions
● Ambient temperature: -5℃~+40℃, the average value within 24 hours does not exceed +35℃;
● Altitude: no more than 2,000m;
● Atmospheric conditions: When the maximum temperature is +40℃, the relative humidity of the air does not exceed 50%; higher relative humidity can be allowed at lower temperatures, such as 90% at 20℃. Special measures should be taken for occasional condensation due to temperature changes;
● Pollution level: 3;
● Installation category: Category III;
● Installation conditions: The inclination between the installation surface and the vertical surface is not greater than ±5°;
● Impact and vibration: The product should be installed and used in a place without significant shaking, impact and vibration.

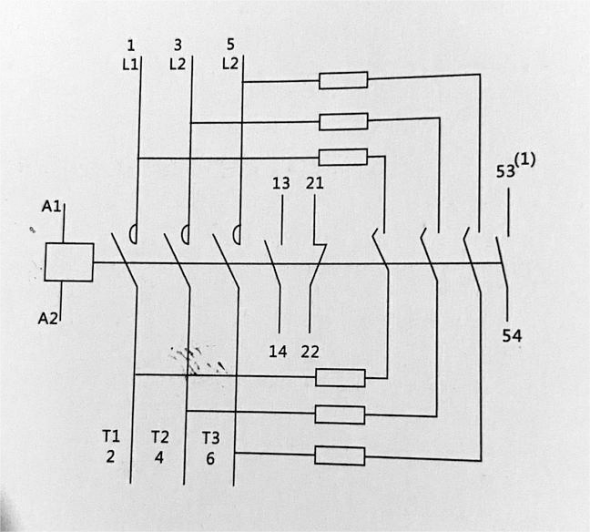

Wiring diagram
Key parameters and performance
|
Parameters |
CJ19-25 |
CJ19-32 |
CJ19-43 |
CJ19-63 |
CJ19-95 |
CJ19-115 |
CJ19-150 |
CJ19-170 |
|
|
Rated current Ie(AC-6b,380V)(A) |
17 |
23 |
29 |
43 |
72.2(400V) |
87(400V) |
115(400V) |
130(400V) |
|
|
Controllable capacitor capacity (kvar) |
220V |
6 |
9 |
10 |
15 |
28.8(240V) |
34.5(240V) |
46(240V) |
52(240V) |
|
380V |
12 |
18 |
20 |
30 |
50(400V |
60(400V) |
80(400V) |
90(400V) |
|
|
Rated insulation voltage (V) |
500 |
500 |
500 |
500 |
500 |
690 |
690 |
690 |
|
|
Surge suppression capability |
|
|
20le |
|
|
|
|
|
|
|
Action conditions |
Pull-in：(85%~110%)Us; Release：(20%~75%)Us |
||||||||
|
Coil power (VA) start/hold |
70/8 |
110/11 |
110/11 |
200/20 |
200/20 |
660/85.5 |
660/85.5 |
660/85.5 |
|
|
Auxiliary contact control capacity |
AC-15:Ie:0.95A 380V/400V DC-13:Ie:0.15A 220V/250V Ith:10A |
||||||||
|
Weight (kg) |
0.44 |
0.63 |
0.64 |
1.4 |
1.5 |
3.45 |
3.45 |
3.45 |
|

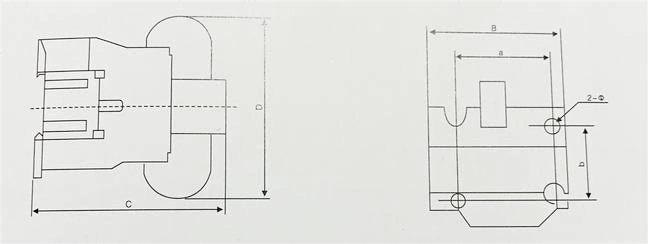

Appearance and installation
In addition to being installed with screws, the container can also be installed with a rail.
| Model | Appearance | Installation | Specifications | |||||
| A | B | C | D | a | b | φ | ||
| CJ19-25□□ | 84 | 56 | 130 | 140 | 40 | 50/60 | 4.5 | 35 |
| CJ19-32□□ | 87 | 58 | 136 | 140 | 40 | 50/60 | 4.5 | 35 |
| CJ19-43□□ | 87 | 58 | 136 | 140 | 40 | 50/60 | 4.5 | 35 |
| CJ19-63□□ | 127 | 79 | 150 | 180 | 40 | 100/110 | 6.5 | 35 or 75 |
|
CJ19-80□□ |
127 | 85 | 160 | 200 | 40 | 100/110 | 6.5 | |
| CJ19-95□□ | 127 | 85 | 160 | 200 | 40 | 100/110 | 6.5 | |

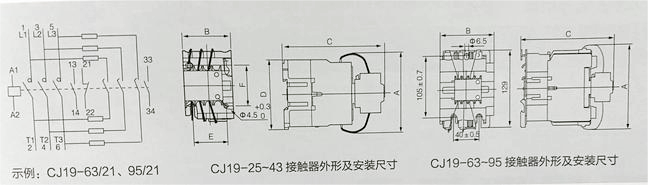

Example
